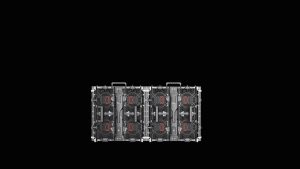

GLK500H2 Indoor&Outdoor Rental LED Display
GLK500H2 LED display is designed with quick locks around it, which is convenient and quick to install and improves the flatness of the screen. This LED display also supports curved installations and is made of durable, aesthetically pleasing materials.
Quick Install
GLK500H2 Series LED screen Two Fast Locks on the Left and Right Side, Ensure faster assembly and better screen flatness.

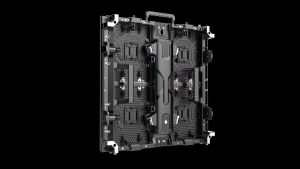

Front and Rear Service Design
GLK500H2 series LED display adopts Magnet Adsorption LED Panel to make the cabinet accessed with frontal & rear design. Easy installation for LED panels.

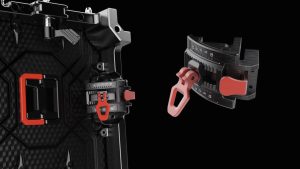

High Precision Curve Lock
GLK500H2 rental LED screen can be equipped with a curve lock to achieve curved installation. Rotary control, easy to use, precisely adjusts the degree of curve.

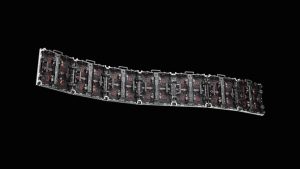

Curved Installation
GLK500H2 rental LED display wall supports curved installation, it can be bent every 2.5° between -10° and 15° and can be convex and concave.

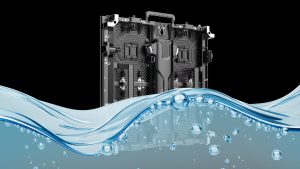

IP65 Dustproof And Waterproof
The GLK500H2 series outdoor LED display supports IP65 dustproof and waterproof,
it can resist severe weather conditions during outdoor activities. And die-cast aluminum is corrosion-resistant.
Power Box Hollow Design
GLK500H2 indoor rental LED display front service series, power box hollow design,
easy maintenance, and excellent heat dissipation.
Seamless Display, Better Visual Effects
The high-precision LED display makes images and videos seamlessly spliced and displayed, providing you with the perfect visual experience you want.

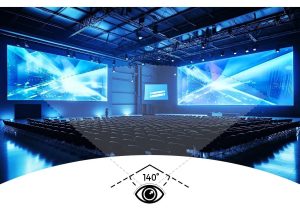

Wide Viewing Angle
The viewing angle is up to 140° vertical and horizontal, providing a wide viewing angle.
Ultra-wide viewing angle gives you the largest screen viewing area.
| Pixel Pitch (mm) | P2.6 | P2.97 | P3.91 | P4.81 |
|---|---|---|---|---|
| Model | GLK500H2-G2.6-O500P | GLK500H2-G2.9-O500P | GLK500H2-G3.9-O500P | GLK500H2-G4.8-O500P |
| Pixel Configuration | SMD1415 | SMD1415 | SMD1818 | SMD1921 |
| Density (Pixels/㎡) | 147,928 | 112,896 | 65,536 | 43,264 |
| Module Resolution (Pixel) | 96×96 | 84×84 | 64×64 | 52×52 |
| Module Size (mm) | 250×250 | 250×250 | 250×250 | 250×250 |
| Driving Mode (Duty) | 1/24 | 1/21 | 1/16 | 1/13 |
| Cabinet Size (mm) | 500×500 | 500×500 | 500×500 | 500×500 |
| Cabinet Weight (KG) | 7.3 | 7.3 | 7.3 | 7.3 |
| Brightness (CD/㎡) | 4500 | 4500 | 4800 | 4200 |
| Viewing Angle (°) | 140 | 140 | 140 | 140 |
| Gray Grade (Bits) | 14 | 14 | 14 | 14 |
| Operation Power | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz |
| Max. Power Consumption (W/㎡) | 720 | 720 | 720 | 560 |
| Avg. Power Consumption (W/㎡) | 240 | 240 | 240 | 190 |
| Frame Frequency (Hz) | ≥60 | ≥60 | ≥60 | ≥60 |
| Refresh Frequency (Hz) | 7,680 | 7,680 | 7,680 | 3,840 |
| Working Temperature (ºC) | -20～+60 | -20～+60 | -20～+60 | -20～+60 |
| Lifetime (Hours) | 100,000 | 100,000 | 100,000 | 100,000 |
| Protection Grade | IP65(front), IP54(rear) | IP65(front), IP54(rear) | IP65(front), IP54(rear) | IP65(front), IP54(rear) |
| Pixel Pitch (mm) | P1.95(GOB) | P2.6 | P2.97 | P3.91 | P4.81 |
|---|---|---|---|---|---|
| Model | GLK500H2-G1.9-I500P | GLK500H2-G2.6-I500P | GLK500H2-G2.9-I500P | GLK500H2-G3.9-I500P | GLK500H2-G4.8-I500P |
| Pixel Configuration | SMD1515 | SMD1515 | SMD1515 | SMD2121 | SMD2121 |
| Density (Pixels/㎡) | 262,144 | 147,928 | 112,896 | 65,536 | 43,264 |
| Module Resolution (Pixel) | 128×128 | 96×96 | 84×84 | 64×64 | 52×52 |
| Module Size (mm) | 250×250 | 250×250 | 250×250 | 250×250 | 250×250 |
| Driving Mode (Duty) | 1/32 | 1/32 | 1/42 | 1/32 | 1/13 |
| Cabinet Size (mm) | 500×500 | 500×500 | 500×500 | 500×500 | 500×500 |
| Cabinet Weight (KG) | 6.5 | 6.5 | 6.5 | 6.5 | 6.5 |
| Brightness (CD/㎡) | 800 | 750 | 800 | 800 | 700 |
| Viewing Angle (°) | 140 | 140 | 140 | 140 | 140 |
| Gray Grade (Bits) | 14 | 14 | 14 | 14 | 14 |
| Operation Power | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz |
| Max. Power Consumption (W/㎡) | 480 | 480 | 480 | 576 | 560 |
| Avg. Power Consumption (W/㎡) | 160 | 160 | 160 | 192 | 190 |
| Frame Frequency (Hz) | ≥60 | ≥60 | ≥60 | ≥60 | ≥60 |
| Refresh Frequency (Hz) | 7,680 | 7,680 | 7,680 | 7,680 | 1,920/3,840 |
| Working Temperature (ºC) | -20～+60 | -20～+60 | -20～+60 | -20～+60 | -20～+60 |
| Lifetime (Hours) | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 |
| Protection Grade | IP31 | IP31 | IP31 | IP31 | IP31 |
