Outdoor Stadium Perimeter LED Screen
GLK960SP2 stadium perimeter LED display is IP65 waterproof, with rear service design, adjustable rear bracket, soft pillow, and quick lock. All these features ensure that the LED screen can adapt to various stadium environments.

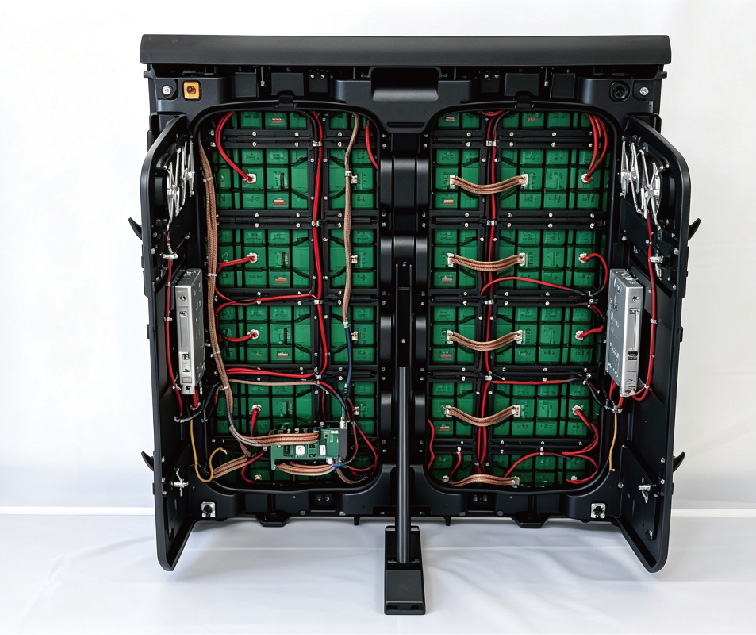

Openable Back Cover
LED display has a compact structure and the back cover can be quickly opened for maintenance operations. The humanized handle design makes it easier for you to move the cabinet.

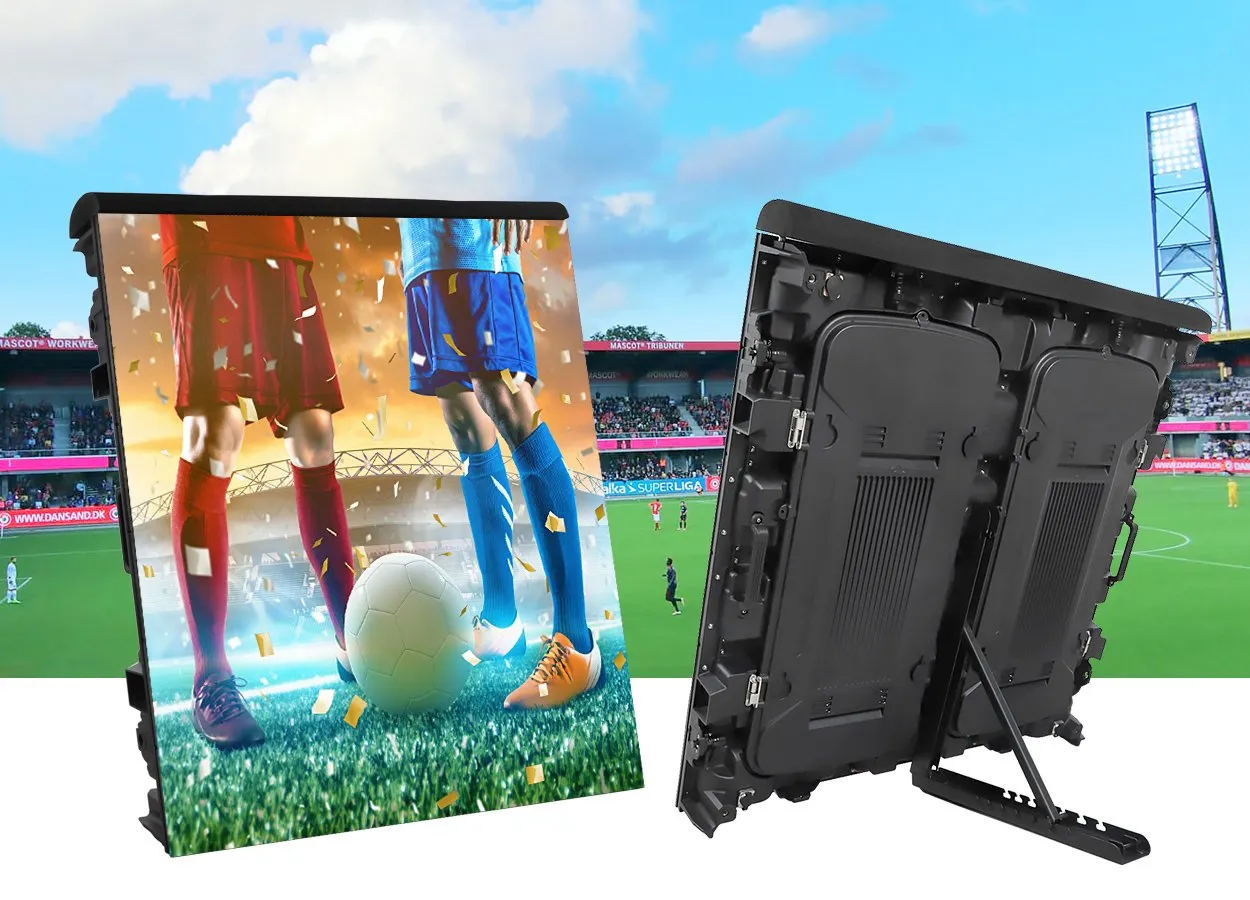

Independent Support Structure
With an independent support structure, it can stand even if it is impacted by a strong external force. The installation angle of the cabinet can be flexibly changed according to the actual situation on site.
Impact-resistant Design
Equipped with a special soft screen mask and cabinet rubber cover protection device to protect players from injury during the game.
Easy to Install
There are two quick locks on the top and left side of the cabinet to support quick installation, and the aviation connector will ensure the stability and reliability of the screen.

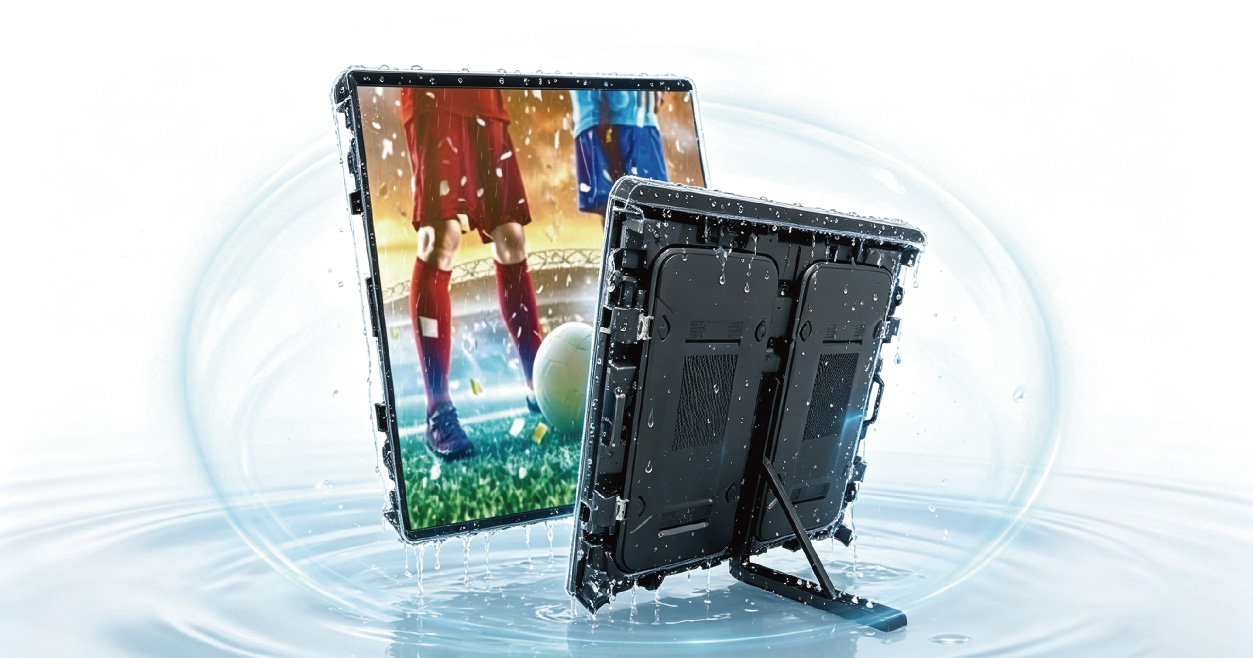

IP65 Waterproof
The ingress protection of cabinet rating up to IP65, the fully sealed cabinet is weatherproof, dustproof, and damp-proof, bringing the ingress protection of the led display up to a new level.

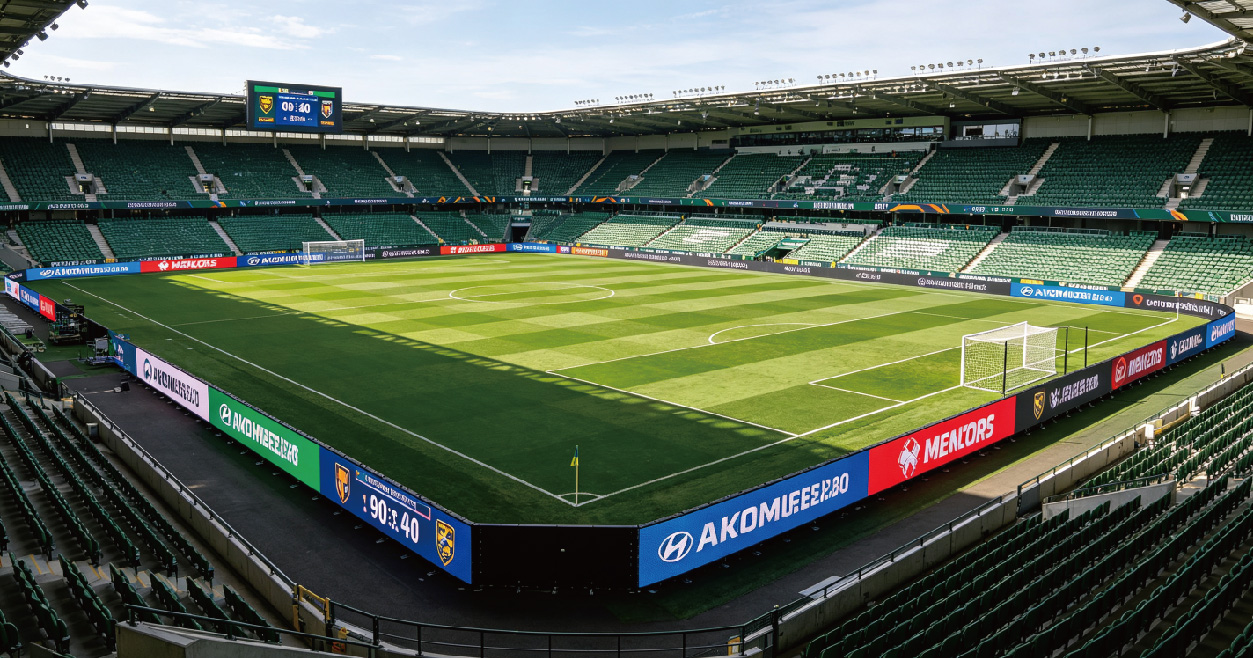

Customized for the Stadium

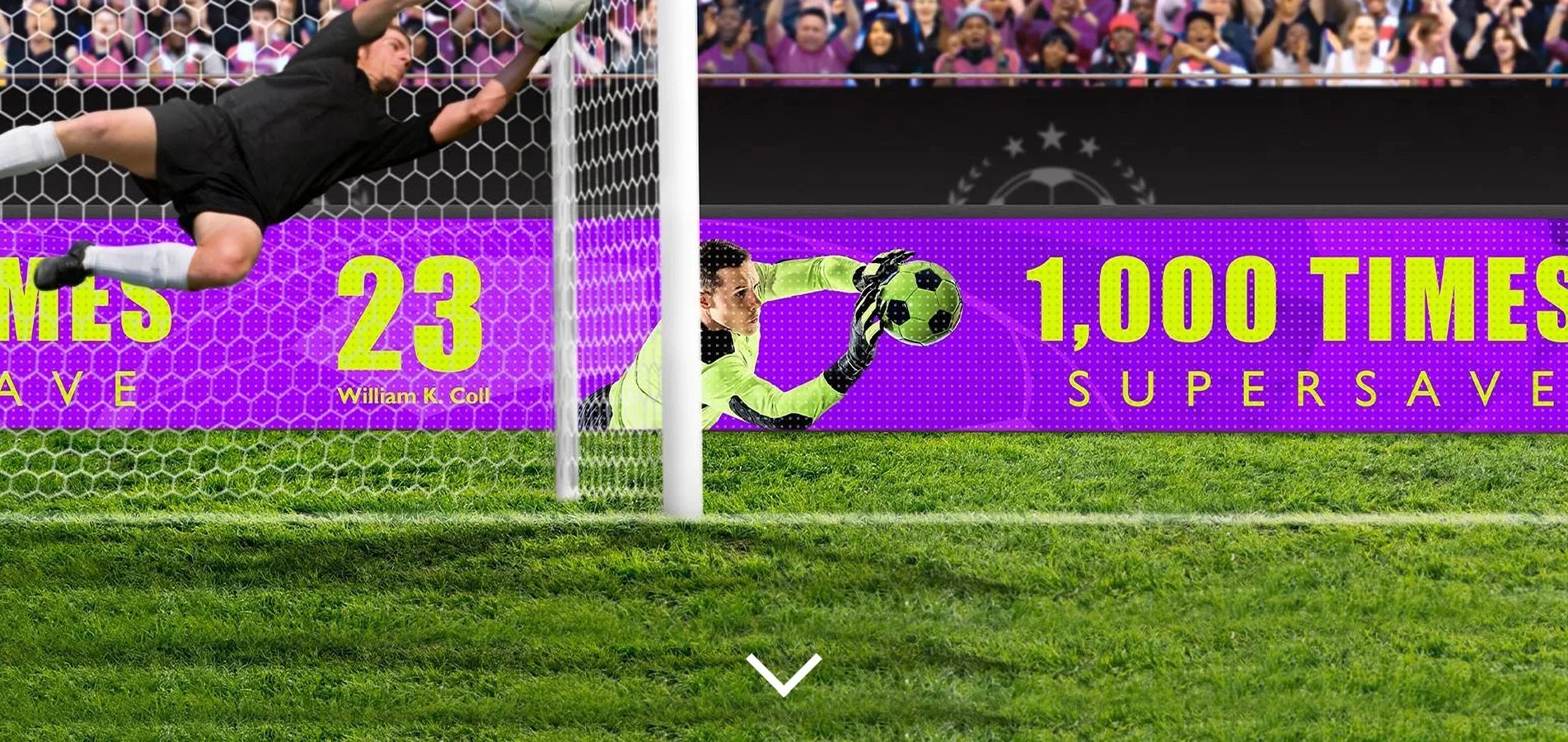

Sport stadium perimeter LED display is suitable to be placed around the stadium. As a carrier of stadium advertising, it is loved by people.
More Installation Types
LED display screen is easy to install and can be hung or stacked. It is suitable for fixed use and rental use.
Superb Display Effect
In commercial display applications, high brightness, and high refresh rate bring users more realistic and vivid visual effects.
| Pixel Pitch | P6.67 | P8 | P10 (2S) | P10 (4S) |
|---|---|---|---|---|
| Model | GLK960SP2-P6.67 | GLK960SP2-P8 | GLK960SP2-P10-2S | GLK960SP2-P10-4S |
| Pixel Configuration | SMD3535 | SMD3535 | SMD3535 | SMD3535 |
| Density (Pixels/㎡) | 22,478 | 15,625 | 10,000 | 10,000 |
| Module Resolution (Pixel) | 48×24 | 40×20 | 32×16 | 32×16 |
| Module Size (mm) | 320×160 | 320×160 | 320×160 | 320×160 |
| Driving Mode (Duty) | 1/6 | 1/5 | 1/2 | 1/4 |
| Cabinet Size (mm) | 960×960 | 960×960 | 960×960 | 960×960 |
| Cabinet Weight (KG) | 30 | 30 | 30 | 30 |
| Brightness (CD/㎡) | 6000 | 5500 | 5800 | 4500 |
| Viewing Angle (°) | 140 | 140 | 140 | 140 |
| Gray Grade (Bits) | 14 | 14 | 14 | 14 |
| Operation Power | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz |
| Max. Power Consumption (W/㎡) | 892 | 600 | 850 | 540 |
| Avg. Power Consumption (W/㎡) | 298 | 200 | 285 | 180 |
| Frame Frequency (Hz) | ≥60 | ≥60 | ≥60 | ≥60 |
| Refresh Frequency (Hz) | 1920 / 3840 | 1920 / 3840 | 1920 / 3840 | 1920 / 3840 |
| Working Temperature (ºC) | -20～+60 | -20～+60 | -20～+60 | -20～+60 |
| Lifetime (Hours) | 100,000 | 100,000 | 100,000 | 100,000 |
| Protecting Grade | IP65(front),IP54(rear) | IP65(front),IP54(rear) | IP65IP65(front),IP54(rear) | IP65(front),IP54(rear) |
