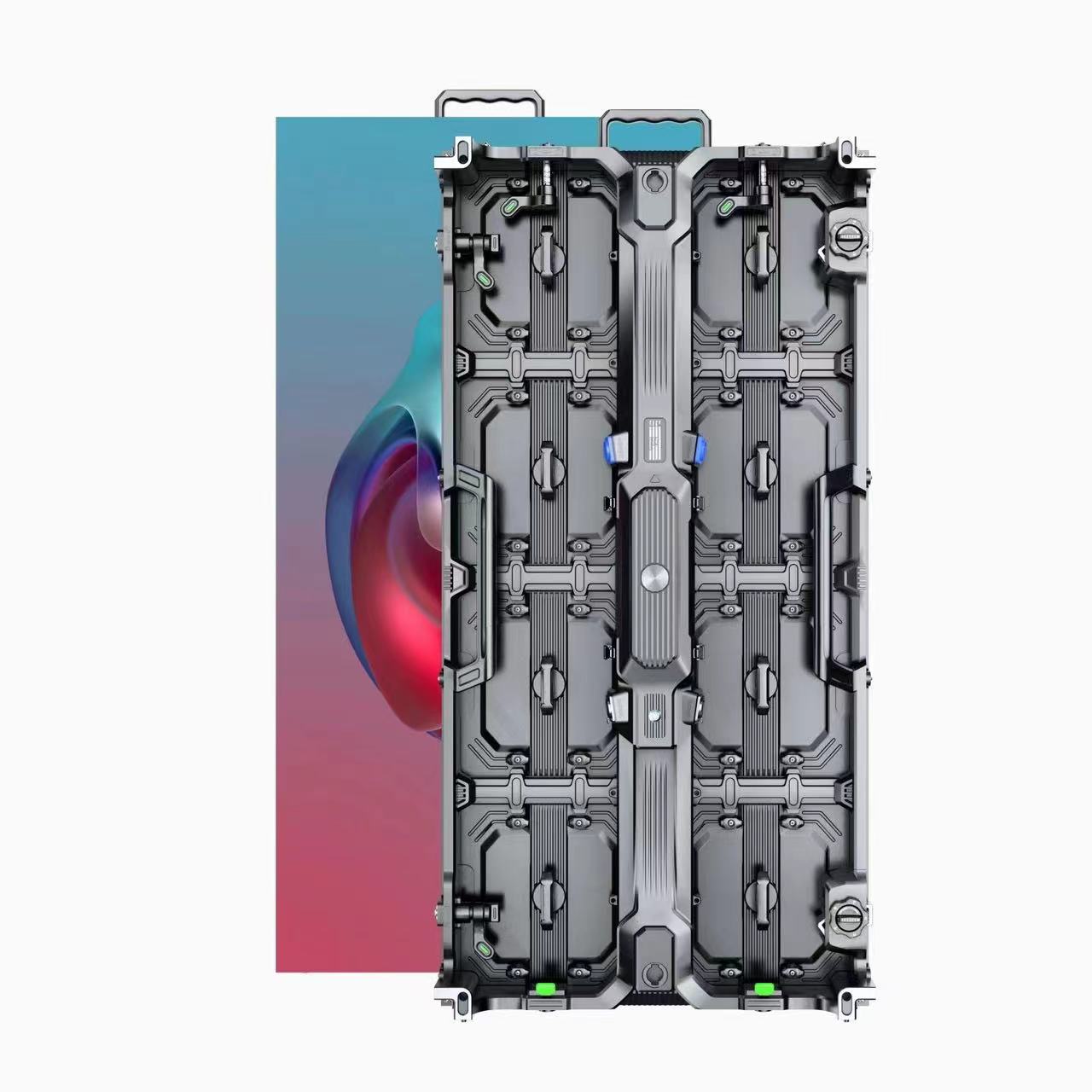

500x1000mm Rental LED Display GLK1000H1 Series

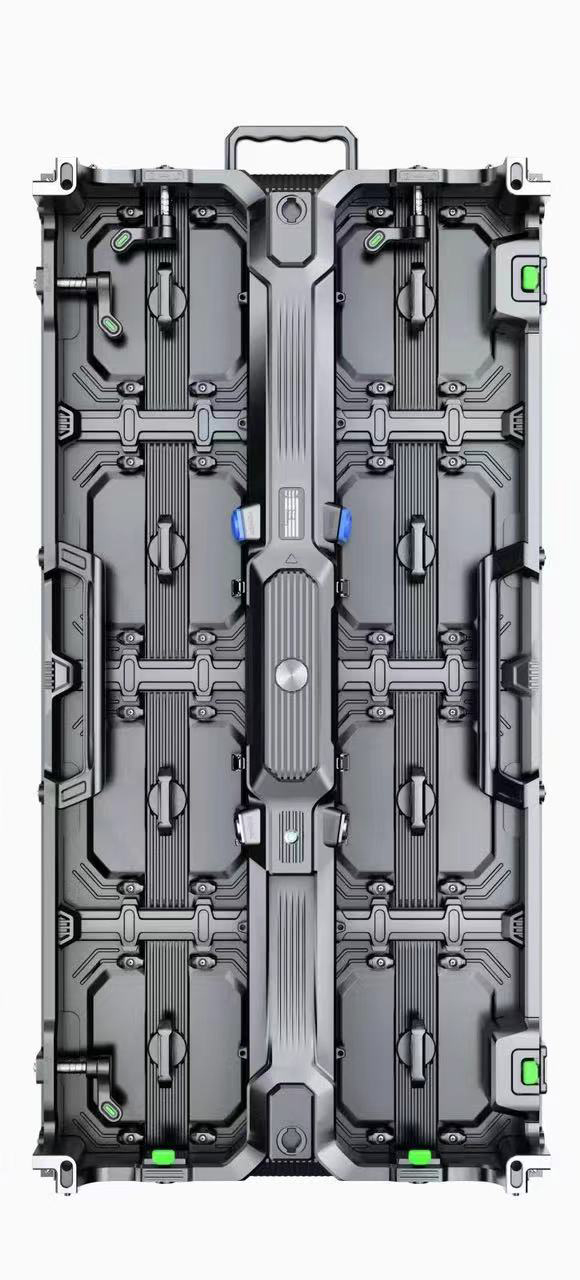

GLK1000H1 cabinet with ultra-thin design, removable back cover, can also share back cover with 500H4 series,

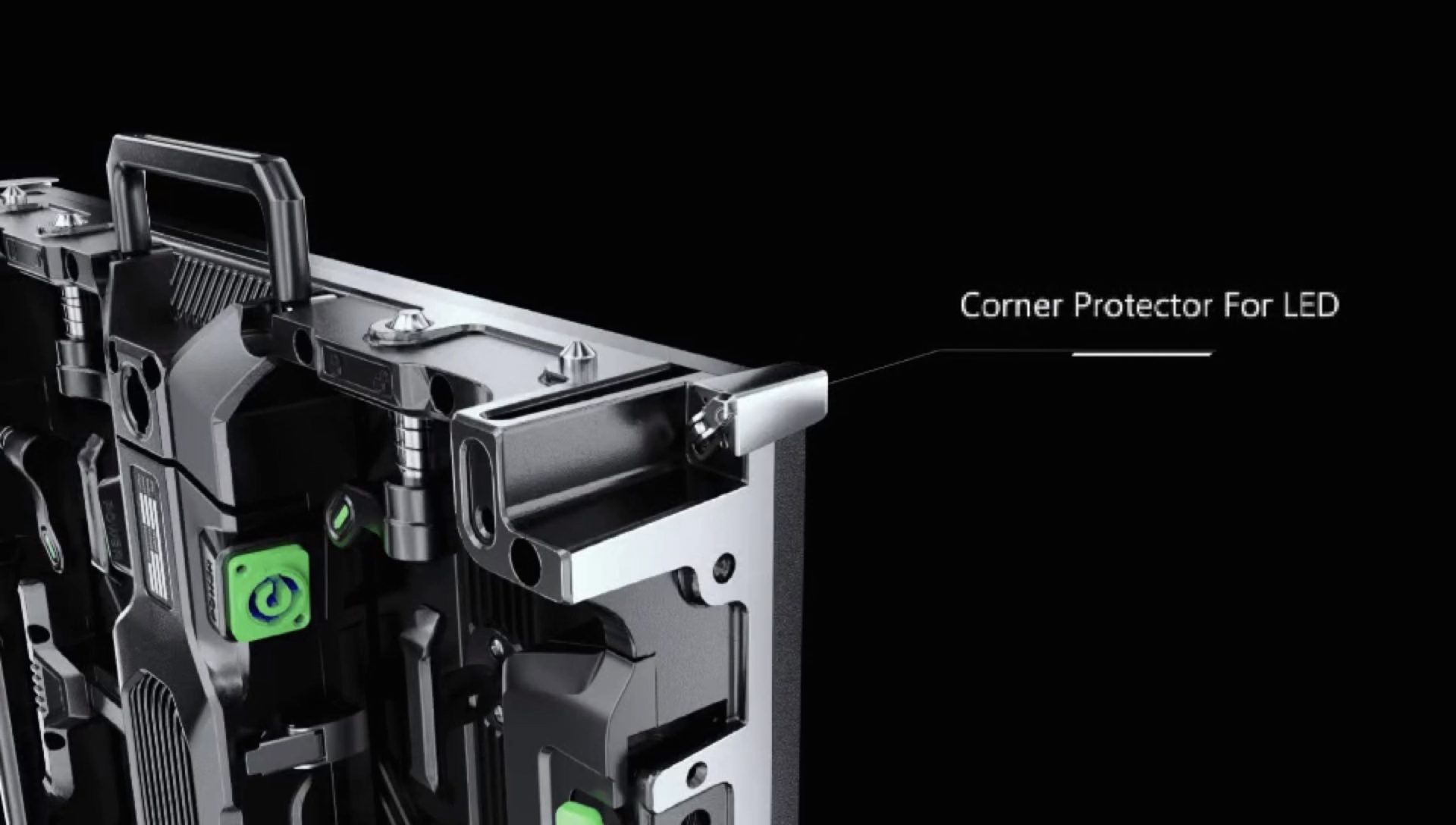

high-precision curve lock for curved installation, LED corner protector, magnetic module, high waterproof

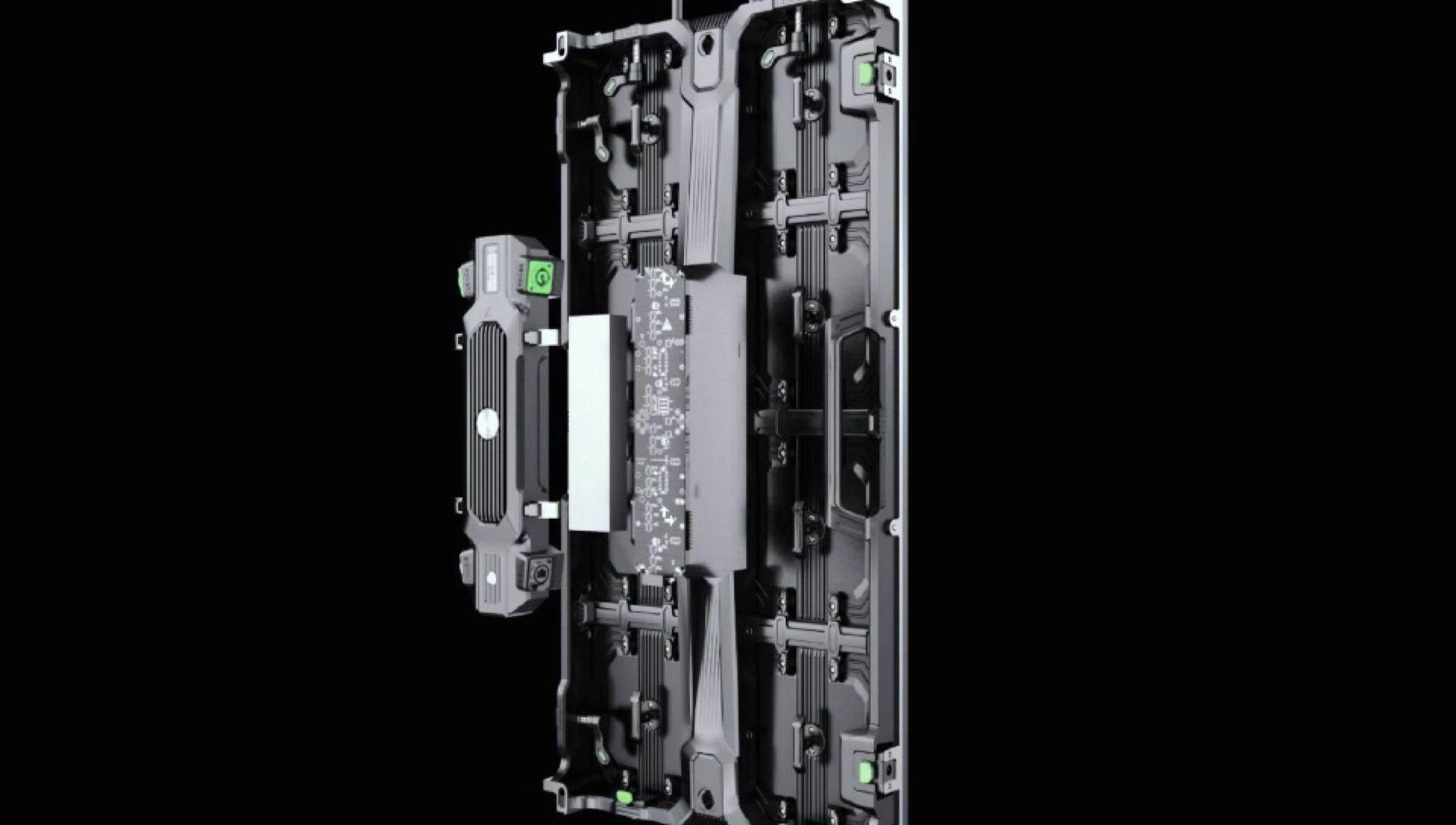

Detachable Back Cover
Hard Connection Design with a detachable Power box and HUB Poard, High IP65 Waterproof with Double Sealing Rubber Ring,
Quick Mounting of Buckles for assembling and disassembling of back cover.

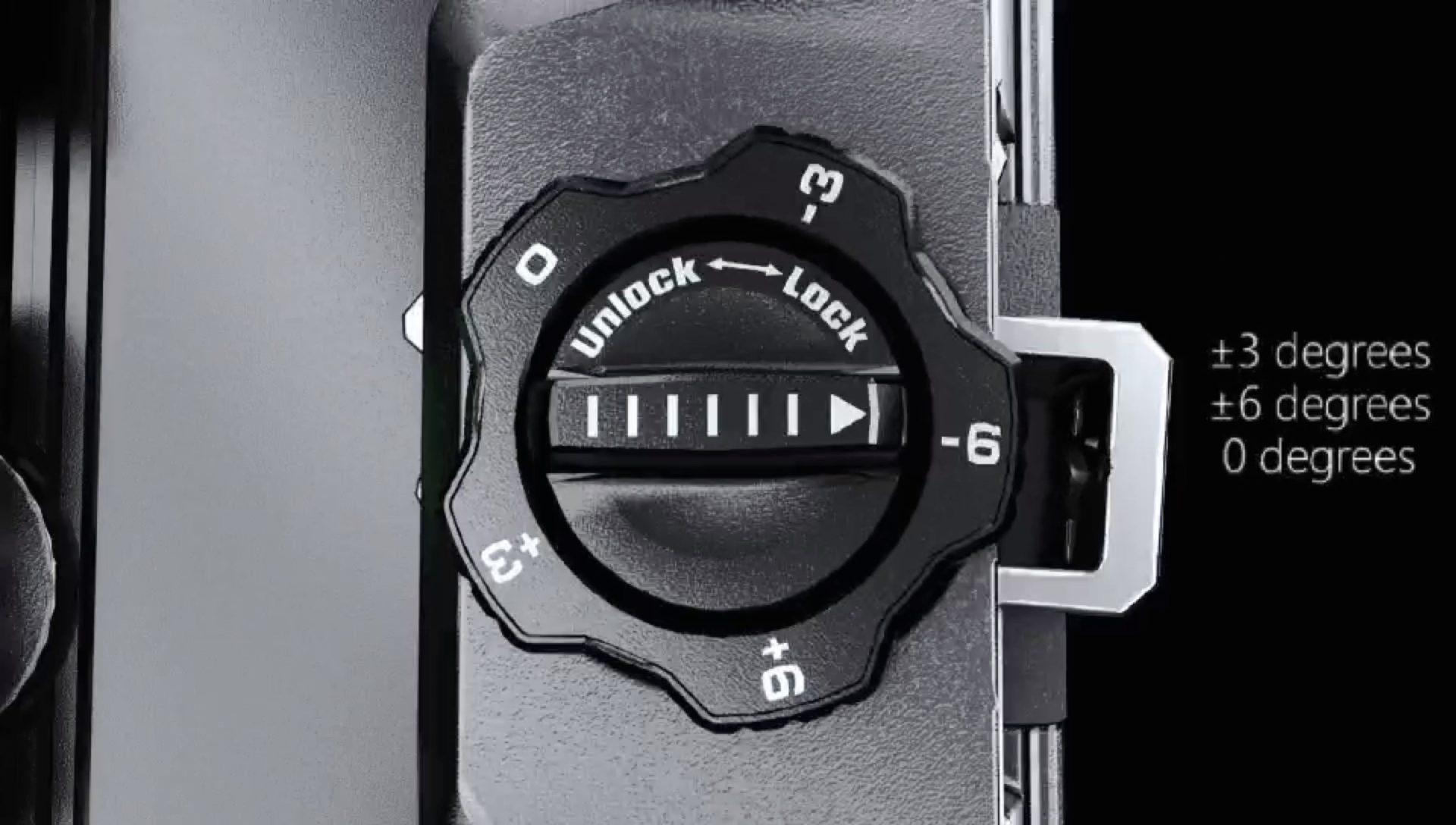

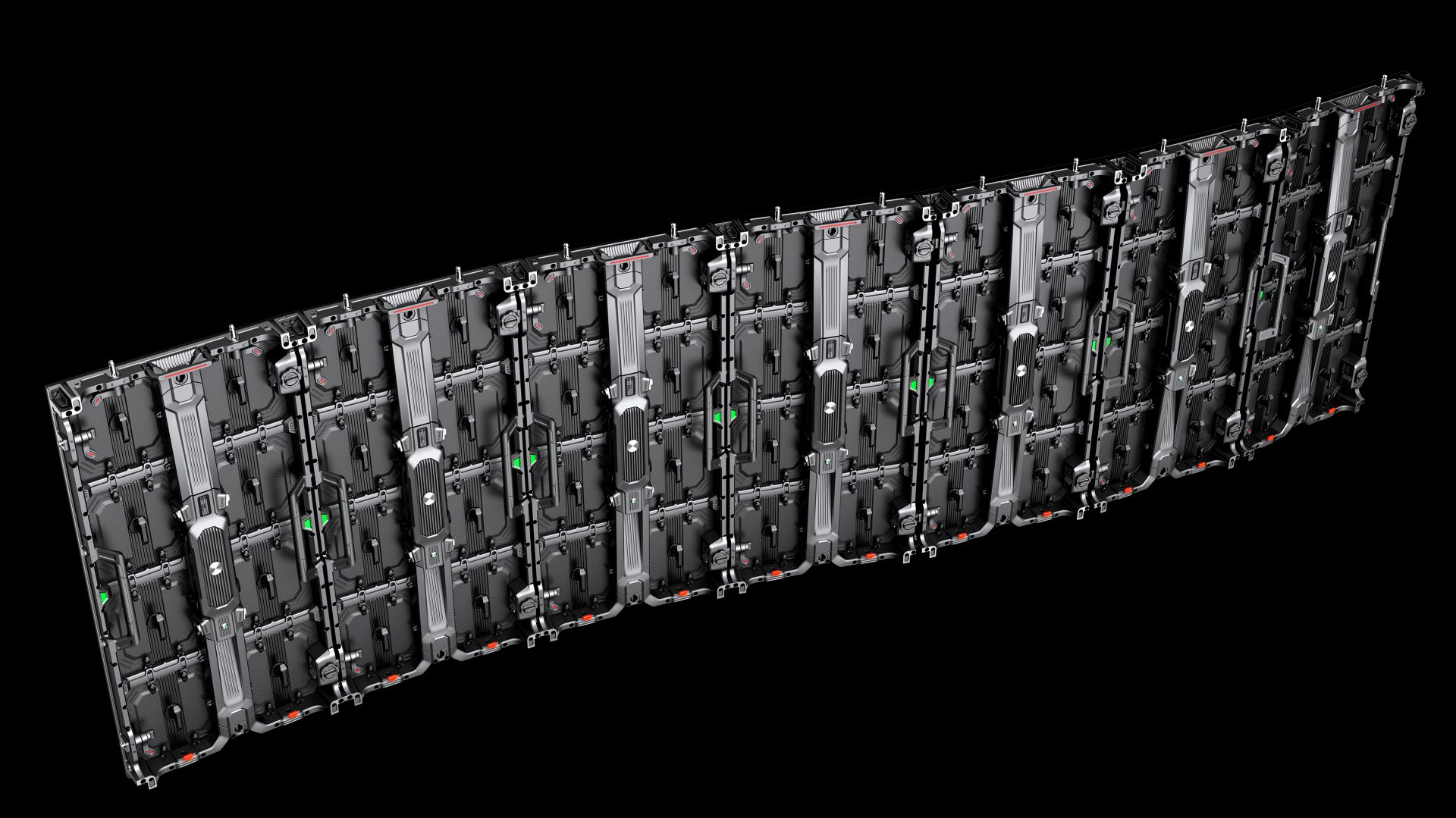

Curved Installation
Support curved installation.

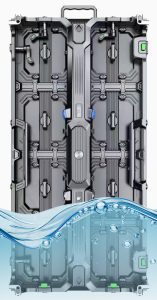

IP65 Dustproof And Waterproof
GLK1000H1 series outdoor LED display supports IP65 dustproof and waterproof,
it can resist severe weather conditions during outdoor activities. And die-cast aluminum is corrosion-resistant.
Wide Viewing Angle
The viewing angle is up to 140° vertical and horizontal, providing a wide viewing angle.
The ultra-wide viewing angle gives you the largest screen viewing area. It offers you clear and natural images in all directions.
| Pixel Pitch (mm) | P2.6 | P2.97 | P3.91 | P4.81 |
|---|---|---|---|---|
| Model | GLK1000H1-G2.6-O1000P | GLK1000H1-G2.9-O1000P | GLK1000H1-G3.9-O1000P | GLK1000H1-G4.8-O1000P |
| Pixel Configuration | SMD1415 | SMD1415 | SMD1818 | SMD1921 |
| Density (Pixels/㎡) | 147,928 | 112,896 | 65,536 | 43,264 |
| Module Resolution (Pixel) | 96×96 | 84×84 | 64×64 | 52×52 |
| Module Size (mm) | 250×250 | 250×250 | 250×250 | 250×250 |
| Driving Mode (Duty) | 1/24 | 1/21 | 1/16 | 1/13 |

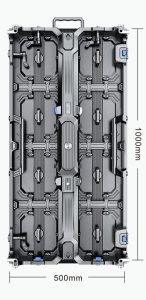

| Cabinet Size (mm) | 500×1000 | 500×1000 | 500×1000 | 500×1000 |
| Cabinet Weight (KG) | 12.5 | 12.5 | 12.5 | 12.5 |
| Brightness (CD/㎡) | 4,500 | 4,500 | 4,800 | 4,200 |
| Viewing Angle (°) | 140 | 140 | 140 | 140 |
| Gray Grade (Bits) | 14 | 14 | 14 | 14 |
| Operation Power | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz |
| Max. Power Consumption (W/㎡) | 720 | 720 | 720 | 560 |
| Avg. Power Consumption (W/㎡) | 240 | 240 | 240 | 190 |
| Frame Frequency (Hz) | ≥60 | ≥60 | ≥60 | ≥60 |
| Refresh Frequency (Hz) | 3,840/7,680 | 3,840/7,680 | 3,840/7,680 | 3,840/7,680 |
| Working Temperature (ºC) | -20～+60 | -20～+60 | -20～+60 | -20～+60 |
| Lifetime (Hours) | 100,000 | 100,000 | 100,000 | 100,000 |
| Protection Grade | IP65(front), IP54(rear) | IP65(front), IP54(rear) | IP65(front), IP54(rear) | IP65(front), IP54(rear) |
| Pixel Pitch (mm) | P1.95(GOB) | P2.6 | P2.97 | P3.91 |
|---|---|---|---|---|
| Model | GLK1000H1-G1.9-I1000P | GLK1000H1-G2.6-I1000P | GLK1000H1-G2.97-I1000P | GLK1000H1-G3.91-I1000P |
| Pixel Configuration | SMD1515 | SMD1515 | SMD1515 | SMD2121 |
| Density (Pixels/㎡) | 262,144 | 147,928 | 112,896 | 65,536 |
| Module Resolution (Pixel) | 128×128 | 96×96 | 84×84 | 64×64 |
| Module Size (mm) | 250×250 | 250×250 | 250×250 | 250×250 |
| Driving Mode (Duty) | 1/32 | 1/32 | 1/42 | 1/32 |
| Cabinet Size (mm) | 500×1000 | 500×1000 | 500×1000 | 500×1000 |
| Cabinet Weight (KG) | 12 | 12 | 12 | 12 |
| Brightness (CD/㎡) | 800 | 750 | 800 | 700 |
| Viewing Angle (°) | 140 | 140 | 140 | 140 |
| Gray Grade (Bits) | 14 | 14 | 14 | 14 |
| Operation Power | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz |
| Max. Power Consumption (W/㎡) | 480 | 480 | 480 | 576 |
| Avg. Power Consumption (W/㎡) | 160 | 160 | 160 | 192 |
| Frame Frequency (Hz) | ≥60 | ≥60 | ≥60 | ≥60 |
| Refresh Frequency (Hz) | 3,840/7,680 | 3,840/7,680 | 3,840/7,680 | 3,840/7,680 |
| Working Temperature (ºC) | -20～+60 | -20～+60 | -20～+60 | -20～+60 |
| Lifetime (Hours) | 100,000 | 100,000 | 100,000 | 100,000 |
| Protection Grade | IP31 | IP31 | IP31 | IP31 |
