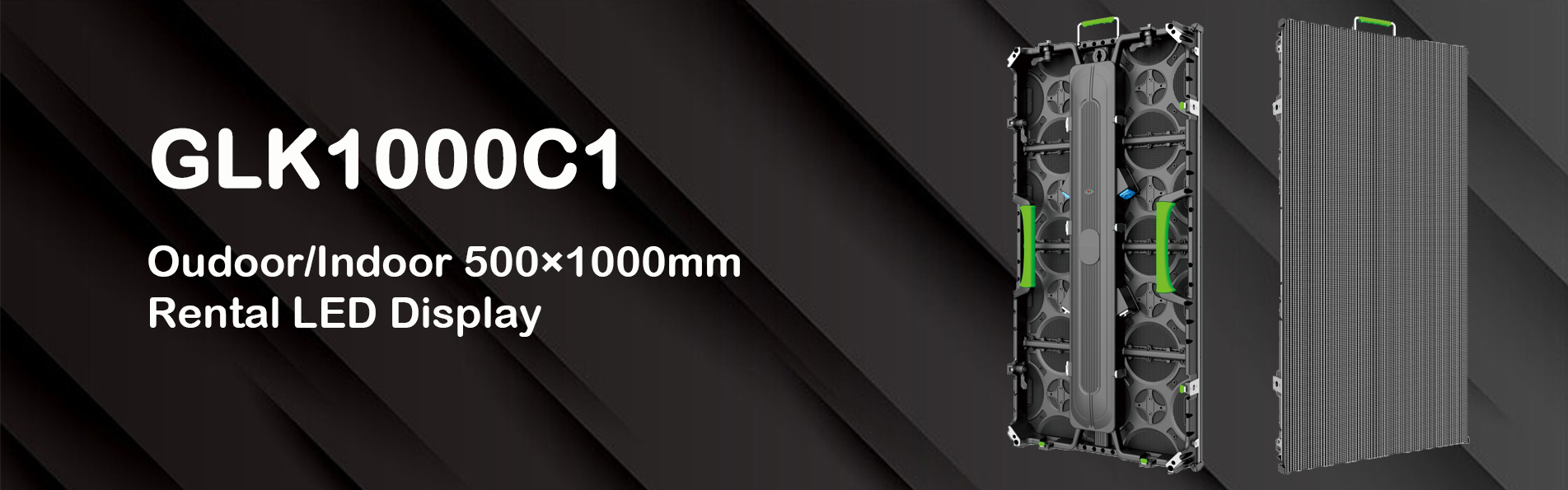

500×1000 Professional Rental LED Display GLK1000C1 Series
GLK1000C1 Series has two quick lock devices on the left and right sides, which can ensure faster assembly speed and better screen flatness.
It also has anti-collision feet at the bottom of the cabinet to protect the edge of the LED module.
GLK500C1 and GLK1000C1 Can be installed together up and down, left and right.
High Precision Curve Lock
A precision Curve Lock design is adopted to solve the problem that the old curved lock was difficult to use before.
Rotational control is more accurate, easy to use, and quickly adjusts the curve degree.
Free Splicing
GLK1000C1 series and GLK1000C1 series can be installed together up and down, left and right.
Lightweight and Thin
GLK1000C1 series LED display cabinet weighs 12.5KG/pc, easy to operate: one person to install, disassemble, and maintain.
Wide Viewing Angle
The viewing angle is up to 140° vertical and horizontal, providing a wide viewing angle.
The ultra-wide viewing angle gives you the largest screen viewing area. It offers you clear and natural images in all directions.
| Pixel Pitch (mm) | P2.6 | P2.97 | P3.91 | P4.81 |
|---|---|---|---|---|
| Model | GLK1000C1-P2.6-O1000C | GLK1000C1-P2.97–O1000C | GLK1000C1-P3.91–O1000C | GLK1000C1-P4.81–O1000C |
| Pixel Configuration | SMD1415 | SMD1415 | SMD1818 | SMD1818 |
| Density (Pixels/㎡) | 147,928 | 112,896 | 65,536 | 43,264 |
| Module Resolution (Pixel) | 96×96 | 84×84 | 64×64 | 52×52 |
| Module Size (mm) | 250×250 | 250×250 | 250×250 | 250×250 |
| Driving Mode (Duty) | 1/24 | 1/21 | 1/16 | 1/13 |
| Cabinet Size (mm) | 500×1000 | 500×1000 | 500×1000 | 500×1000 |
| Cabinet Weight (KG) | 14 | 14 | 14 | 14 |
| Brightness (CD/㎡) | 4500 | 4500 | 4800 | 4200 |
| Viewing Angle (°) | 140 | 140 | 140 | 140 |
| Gray Grade (Bits) | 12.5 | 12.5 | 12.5 | 12.5 |
| Operation Power | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz |
| Max. Power Consumption (W/㎡) | 720 | 720 | 720 | 560 |
| Avg. Power Consumption (W/㎡) | 240 | 240 | 240 | 190 |
| Frame Frequency (Hz) | ≥60 | ≥60 | ≥60 | ≥60 |
| Refresh Frequency (Hz) | 3,840/7,680 | 3,840/7,680 | 3,840/7,680 | 3,840/7,680 |
| Working Temperature (ºC) | -20～+60 | -20～+60 | -20～+60 | -20～+60 |
| Lifetime (Hours) | 100,000 | 100,000 | 100,000 | 100,000 |
| Protection Grade | IP65(front), IP54(rear) | IP65(front), IP54(rear) | IP65(front), IP54(rear) | IP65(front), IP54(rear) |
| Pixel Pitch (mm) | P1.95(GOB) | P2.6 | P2.97 | P3.91 | P4.81 |
|---|---|---|---|---|---|
| Model | GLK1000C1-P1.95-I1000C | GLK1000C1-P2.6-I1000C | GLK1000C1-P2.97-I1000C | GLK1000C1-P3.91-I1000C | GLK1000C1-P4.81-I1000C |
| Pixel Configuration | SMD1515 | SMD1515 | SMD2121 | SMD2121 | SMD2121 |
| Density (Pixels/㎡) | 262,144 | 147,928 | 112,896 | 65,536 | 43,264 |
| Module Resolution (Pixel) | 128×128 | 96×96 | 84×84 | 64×64 | 52×52 |
| Module Size (mm) | 250×250 | 250×250 | 250×250 | 250×250 | 250×250 |
| Driving Mode (Duty) | 1/32 | 1/32 | 1/42 | 1/32 | 1/13 |
| Cabinet Size (mm) | 500×1000 | 500×1000 | 500×1000 | 500×1000 | 500×1000 |
| Cabinet Weight (KG) | 12 | 12 | 12 | 12 | 12 |
| Brightness (CD/㎡) | 800 | 750 | 800 | 800 | 700 |
| Viewing Angle (°) | 140 | 140 | 140 | 140 | 140 |
| Gray Grade (Bits) | 12.5 | 12.5 | 12.5 | 12.5 | 12.5 |
| Operation Power | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz |
| Max. Power Consumption (W/㎡) | 480 | 480 | 480 | 576 | 560 |
| Avg. Power Consumption (W/㎡) | 160 | 160 | 160 | 192 | 190 |
| Frame Frequency (Hz) | ≥60 | ≥60 | ≥60 | ≥60 | ≥60 |
| Refresh Frequency (Hz) | 3,840/7,680 | 3,840/7,680 | 3,840/7,680 | 3,840/7,680 | 3,840/7,680 |
| Working Temperature (ºC) | -20～+60 | -20～+60 | -20～+60 | -20～+60 | -20～+60 |
| Lifetime (Hours) | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 |
| Protection Grade | IP31 | IP31 | IP31 | IP31 | IP31 |
